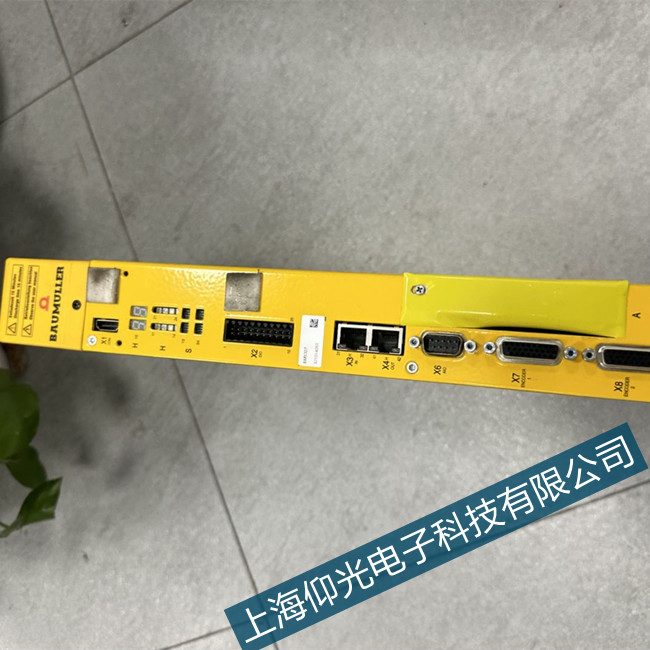

上海哪里有鮑米勒伺服驅動器910故障維修商家:910：Overspeed detected at set value input: 在設定值輸入處檢測到超速：In the operating mode speed control or speed setting a set value was written exceeding the maximum interpolating speed set value of  the set value manager. Refer to Z110.3– Output for details. 在運行模式下，速度控制或速度設置設定值寫入的內容超過了的最大插值速度設置值設定值管理器。有關詳細信息，請參閱Z110.3–輸出。

Set values were written in the operating mode Position Control (-4) that either exceed the set speed limit (Parameter Z121.11–), the allowed maximum speed of the motor (Parameter Z107.26–) or max. interpolatable set value speed.設定值是在操作模式下寫入的位置控制（-4）超過設定的速度限制（參數Z121.11-）電機允許的最大速度（參數Z107.26-）或最大可插值設定值速度。

The error is displayed and the set value speed is limited (Z121.11–and Z107.26– respectively) at error response „No response“. Therefore the input position and the output position drift away.在錯誤響應“無響應”時，顯示錯誤并限制設定值速度（分別為Z121.11-和Z107.26-）。因此，輸入位置和輸出位置偏移。

A speed (= master shaft speed) was recognized at the encoder input in operating mode synchronous operation (-5), which leads to an overflow at the encoder output with the set gear ratio. The error is displayed and the drive tries to reduce the speed to the allowed limit at error response „No response“.在操作模式同步操作（-5）中，編碼器輸入處識別出速度（=主軸速度），這導致在設定傳動比的情況下編碼器輸出處溢出。顯示錯誤，驅動器試圖在錯誤響應“無響應”時將速度降低到允許的極限。

Other error responses: 其他錯誤響應：

The active operating mode will be terminated and the drive will be decelerated according to the preset error response。The error can be reset at any time.

主動操作模式將終止，驅動器將根據預設的錯誤響應減速該錯誤可以隨時重置。
