鮑米勒控制器910故障代碼報警維修：上海仰光電子科技有限公司專業從事各品牌伺服驅動器維修,伺服電機維修,觸摸屏維修,變頻器維修,伺服器維修,伺服控制器維修,數控系統維修改造，機器人維修保養以及各種板卡,芯片級維修維護,免費檢測,快速維修,部分立等可取!910：Overspeed detected at set value input在設定值輸入處檢測到超速。

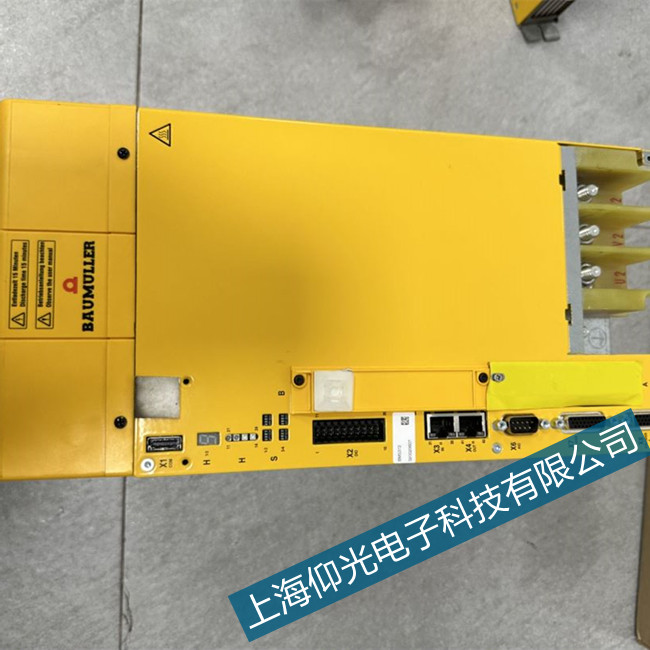

鮑米勒伺服驅動器維修案例：

In the operating mode speed control or speed setting a set value was written exceeding the maximum interpolating speed set value of the set value manager. 在運行模式下，速度控制或速度設置設定值寫入的內容超過了的最大插值速度設置值設定值管理器。

Refer to Z110.3– Output for details.

有關詳細信息，請參閱Z110.3–輸出。

Set values were written in the operating mode Position Control (-4)

that either exceed the set speed limit (Parameter Z121.11–)

設定值是在操作模式下寫入的位置控制（-4）超過設定的速度限制（參數Z121.11-）

the allowed maximum speed of the motor (Parameter Z107.26–) or max.

電機允許的最大速度（參數Z107.26-）或最大。

interpolatable set value speed.

可插值設定值速度。

The error is displayed and the set value speed is limited (Z121.11–

and Z107.26– respectively) at error response „No response“.

顯示錯誤并限制設定值速度（Z121.11–和Z107.26–分別）。

Therefore the input position and the output position drift away.

因此，輸入位置和輸出位置偏移。

A speed (= master shaft speed) was recognized at the encoder input

in operating mode synchronous operation (-5)在編碼器輸入處識別出速度（=主軸速度）運行模式下同步運行（-5）

which leads to an overflow at the encoder output with the set gear ratio.

這導致在具有設定傳動比的編碼器輸出處溢出。

The error is displayed and the drive tries to reduce the speed to the allowed limit at error response „No response“.

顯示錯誤，驅動器試圖在錯誤響應“無響應”時將速度降低到允許的極限。

Other error responses: 其他錯誤響應：

The active operating mode will be terminated and the drive will be

decelerated according to the preset error response

活動操作模式將終止，驅動器將根據預設的錯誤響應減速

The error can be reset at any time.

該錯誤可以隨時重置。
